特 点:
◎采用圆刀半断分切带底纸的材料。分切宽度可以任意调节。
◎根据客户要求,定制放料-纠偏-分切-排废-恒张力-收卷同步进行,收卷整齐。
◎精度高、效率高、损耗少、操作简单。
Features:

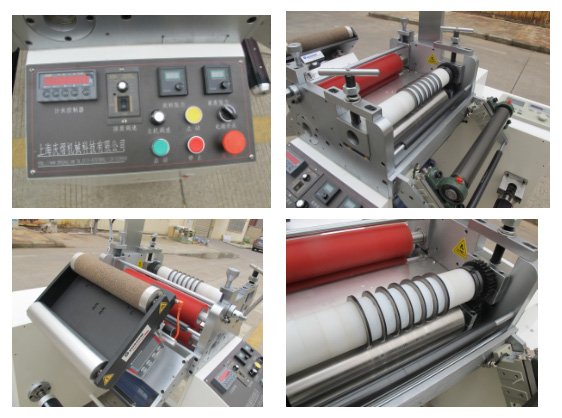

◎Applied by round slitting knife, the machine is applicable for kiss-cut linear-based materials. The cutting widths are easy for adjustment by the spacers among the knives.
◎Unwinding,cutting,rewinding run simultaneously. Rewinding rolls are neat
◎High precision, low waste, easy to operate.
用 途:
适用于脚垫、硅橡胶、泡棉、扩散片、反射膜、双面胶、PET、PC、PE、绝缘纸、铜/铝箔、导电布、导电泡棉,各种胶粘制品等材料分切。
Application:
Slitting for foot mat, silicon rubber, foam, diffuser, reflective film, double-sided adhesive tape, PET,PC,PE, insulation paper, copper/aluminum foil, conductive fabric, conductive foam and various of adhesive products.
主要技术参数Main Technical Parameters:
型号/Model |
QY-320BF
|
电压/Voltage |
220V50HZ
|
动力/Power |
1HP
|
分切速度/Slitting speed |
0-60m/min
|
最大进料宽度/Max. feeding width |
320mm
|
最小分切宽度/Min. slitting width |
1mm
|
分切精度/Precision |
±0.05mm |
最大收料直径/Max. rewinding diameter |
350mm |
外型(长*宽*高)/Machine size (L*W*H) |
1500*1000*1000mm |
净重/N.W. |
350KG |
